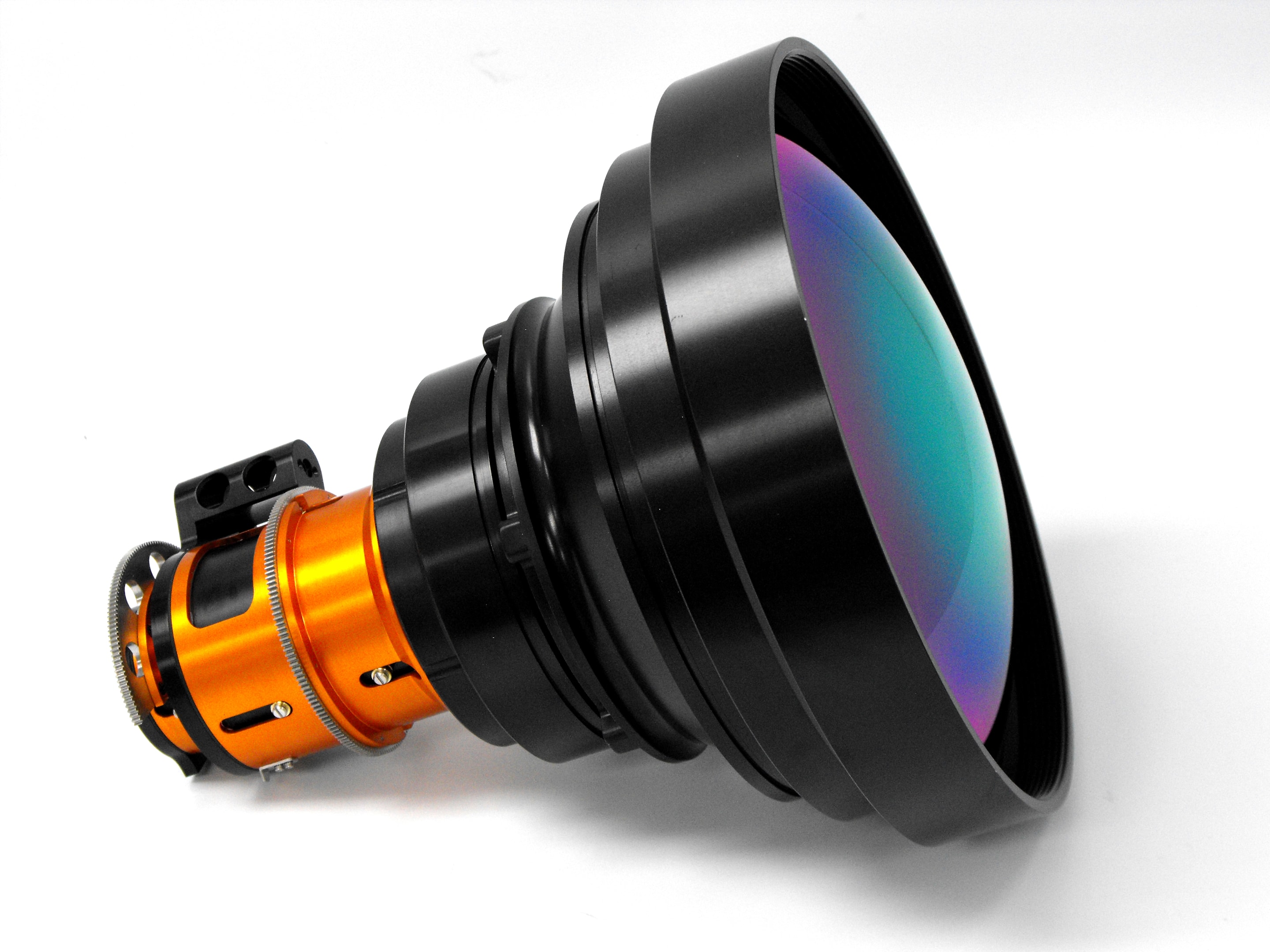

To keep infrared lenses in top condition, always wear nitrile powder-free gloves to prevent oils from degrading the lens. Handle lenses by the edges, avoid direct contact with the optical surfaces, and use lint-free tissues on any surface they are set on.
Start cleaning with an air blower to remove dust, or microfiber cloth for smudges, use a lens cleaner with isopropyl alcohol — dampen the cloth, not the lens, to avoid streaks. Store lenses in a clean, dry place, wrapped in lint-free tissue. Some hydroscopic materials require storage in a dry boxes.
Precautions and Preparation
Before diving into the cleaning process, ensure you are working in a well-lit area. Avoid touching the surface with your fingers; The oils from your skin can leave smudges and potentially damage the delicate coating.
Start by using a soft, dry lens tissue to remove any loose dust particles gently. This initial step is crucial as it minimizes the risk of scratching the lens during the cleaning process.
General Handling Procedures
Wear Gloves Always:
No matter how durable the optic may seem, oils and dirt from your skin can degrade performance. Use nitrile powder-free gloves (like Uline’s Model S-14179) during final cleaning to avoid contamination. Even with gloves, handle the lenses by the edges, avoiding direct contact with optical surfaces.
Avoid Touching Optical Surfaces:
Avoid unnecessary handling of all optical surfaces, especially lenses, coatings, and mirrors, to prevent scratches or smudges. Place lenses only on lint-free lens tissues and never on bare surfaces like tabletops to avoid contact with abrasive materials.
Use Approved Tools Only:
For delicate optical surfaces, use non-contact tools like a vacuum wand or optical testing equipment fixtures. Avoid all other tools including metal tweezers, picks, or pliers, which can damage the anti reflective coating.
Pre-Cleaning Precautions
Before cleaning, handle the lens by the edges or lens hood to prevent oils from touching the optical surface. Inspect for loose dust or debris and use a soft, dry cloth to remove it gently, minimizing the risk of damage.
Remember, a little dust on the lens may not significantly affect image quality, and excessive cleaning can do more harm than good.
Cleaning Materials and Tools
When it comes to cleaning infrared lenses or component, using the right solution, materials, or tools is paramount. Here are some recommended cleaning tools:
-
Handheld Air Blower: Use hand held air blower or dry nitrogen if available.
-
Lens Tissue: Soft, dry lens tissue is perfect for gently removing loose dust particles from the lens surface without scratching it.
-
Commercial Lens Cleaner: A commercial lens cleaner containing more than 30% isopropyl alcohol is effective for cleaning infrared lenses. It helps dissolve oils and other contaminants without harming the coating.
-
Cleaning Fluid: Use alcohol when you can. Acetone can be used on most AR coatings but should be avoided on metal coatings. Apply it sparingly and avoid excessive pressure to prevent damage.
-
Microfiber Cloths: Microfiber cloths are your last line of defense. Ensure the cloth is clean and dry to avoid leaving streaks or residue.
-
Sensor Cleaning Tools: For cleaning the sensor filter glass (IR filter / hot mirror) or sensor cover glass, use soft, lint-free tools like cotton swabs to avoid scratching the surface.
By using these materials and tools correctly, you can effectively clean your infrared lenses while preserving their delicate coatings.
Choosing the Right Cleaning Materials
Selecting the appropriate cleaning materials is paramount. Opt for isopropyl alcohol or IPA to not leave a residue. Always use clean lens tissue to avoid leaving streaks or residue on the lens. By using the right materials, you can keep your lens in pristine condition.
Cleaning Procedures
General Cleaning for Durable Optical Surfaces
-
Handheld Air Blower: Use an air blower or lean, dry nitrogen to remove dust and fibers without touching the surface. Avoid using compressed shop air, which may contain oil or water.
-
Lens Tissue with Solvents: For fingerprints or films, use a lint-free optical wipe dampened with isopropyl alcohol (IPA). Wipe slowly, allowing the surface to dry as you clean. Only wipe once per cloth, as reusing can spread contaminants.
-
Rolling Motion: Employ a gentle rolling motion to remove contaminants without scratching the surface.
Specialized Cleaning for Sensitive Surfaces with Lens Tissue
Sensitive surfaces like coatings, diamond-turned surfaces, and protected metallic surfaces need special care:
- Drop and Drag Method: Place a lint-free wipe with a few drops of IPA or acetone on the surface, then drag it across gently, without added pressure.
- IPA Rinse: Hold the optic vertically, rinsing with IPA or acetone over a basin, then dry with an air blower.
Isopropyl Alcohol or IPA
Considerations
-
IR Filter Coatings: Filter coatings are sensitive to contact and chemical exposure. Clean your filter with a soft, lint-free cloth and approved cleaning agents, avoiding pressure or rubbing.
-
Binary and Fresnel Surfaces: With delicate edges between zones, only non-contact methods like air should be used gently to avoid damaging thin edges.
-

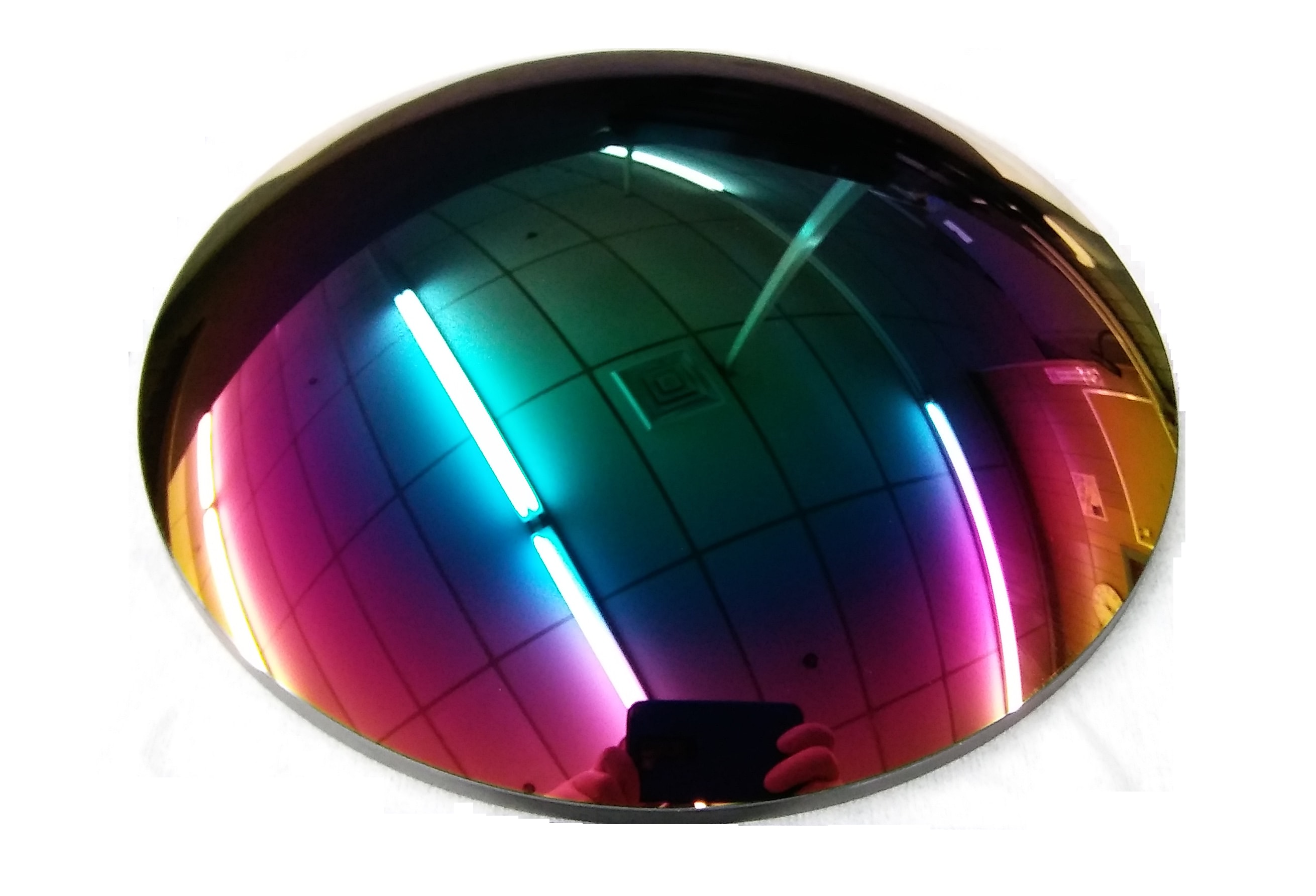

Diamond-Turned Surfaces: Machined to high precision, these surfaces with refractive rings are more sensitive to damage. Avoid all contact-based tools, using only non-contact methods.
-
Bare Metallic Coatings: Extremely delicate, bare metallic surfaces should only be cleaned with an air blower and avoid fluid. No contact cleaning methods should be used to avoid damage.
-
Protected Metallic Coatings: Though more durable than bare coatings, these surfaces can still react to certain chemicals (e.g., IPA on aluminum). Use only approved methods, such as the drop-and-drag technique, to prevent damage.
Removing Stubborn Stains and Smudges
Encountering stubborn stains or smudges can be frustrating, but using the right techniques can help remove them without causing damage. If other methods have not worked try a dry microfiber cloth to gently wipe away the stain or smudge.
If the stain persists, use a acetone. Apply a small amount of cleaning fluid to lens tissue, not directly to the lens, and gently wipe in a circular motion. Avoid applying excessive pressure, as this can damage the anti-reflective coating.
Material-Specific Handling and Storage for Camera Lenses
Hydroscopic also called Hygroscopic Materials
Store these materials in dry boxes to prevent moisture absorption, which could damage the material. Calcium fluoride and barium fluoride are examples of material that absorbs water or are hygroscopic.
Temperature-Sensitive Materials
Prevent thermal shock by allowing materials to acclimate to new environments for 24 hours before unpacking. Only trained personnel should handle these more sensitive materials.
Drying and Inspecting the Lens
After cleaning your infrared camera lens, it’s crucial to dry and inspect it to ensure it’s free of streaks or residue. Once the lens is thoroughly clean and dry, store it in a protective case or pouch to keep it safe from dust and damage. Proper drying and inspection are essential.
Troubleshooting Common Issues
Cleaning infrared lenses or component can sometimes present challenges. Here are some common issues and troubleshooting tips:
-
Excessive Cleaning: Avoid cleaning the lens more often than necessary, as excessive cleaning can wear down the anti-reflective coating. Clean only when you notice visible dirt or smudges.
-
Dust and Dirt: Use a soft, dry lens tissue or air to gently remove loose dust or dirt particles.
-
Fingerprints and Oils: To remove fingerprints and oils, use IPA and lens tissue. Apply the cleaner to the cloth, not directly to the lens, and wipe gently.
-
Streaks and Residue: If streaks or stains remain after cleaning acetone can help.
Avoid harsh chemicals and abrasive materials, as they can damage the coating. By following these tips, you can address common cleaning issues and maintain the integrity of your infrared lenses and optics.
Dry Box Storage and Transportation
When not in use, optics should be wrapped in lint-free tissue and stored in a containers. Some materials, like hygroscopic types, require storage in dry boxes or vacuum sealed pouches to prevent humidity exposure and water absorption.
For transportation, use a sturdy, shock-absorbent case, avoiding extreme temperatures and chemical exposure.
Conclusion
By following these detailed handling, cleaning, and storage practices, you can maintain the performance and longevity of your infrared optics.
Each material and coating type has specific needs—respecting these requirements is essential to preserving the integrity of sensitive infrared cameras, lenses or equipment. If in doubt about any step, consult trained personnel.
